Operation

Technical Specifications

Inputs	8
Input range	0 - 10 V / 4 - 20 mA (sink)
Resolution	12 bits, 2.44 mV per count / 3.9 µA per count
Accuracy	± 0.4 % full-scale @ 25 °C
Accuracy drift with temperature	± 0.005 % per °C

Diagnostics

The Diagnostic view provides configuration and live measurements for each analog input channel, helping verify channel setup and signal integrity.

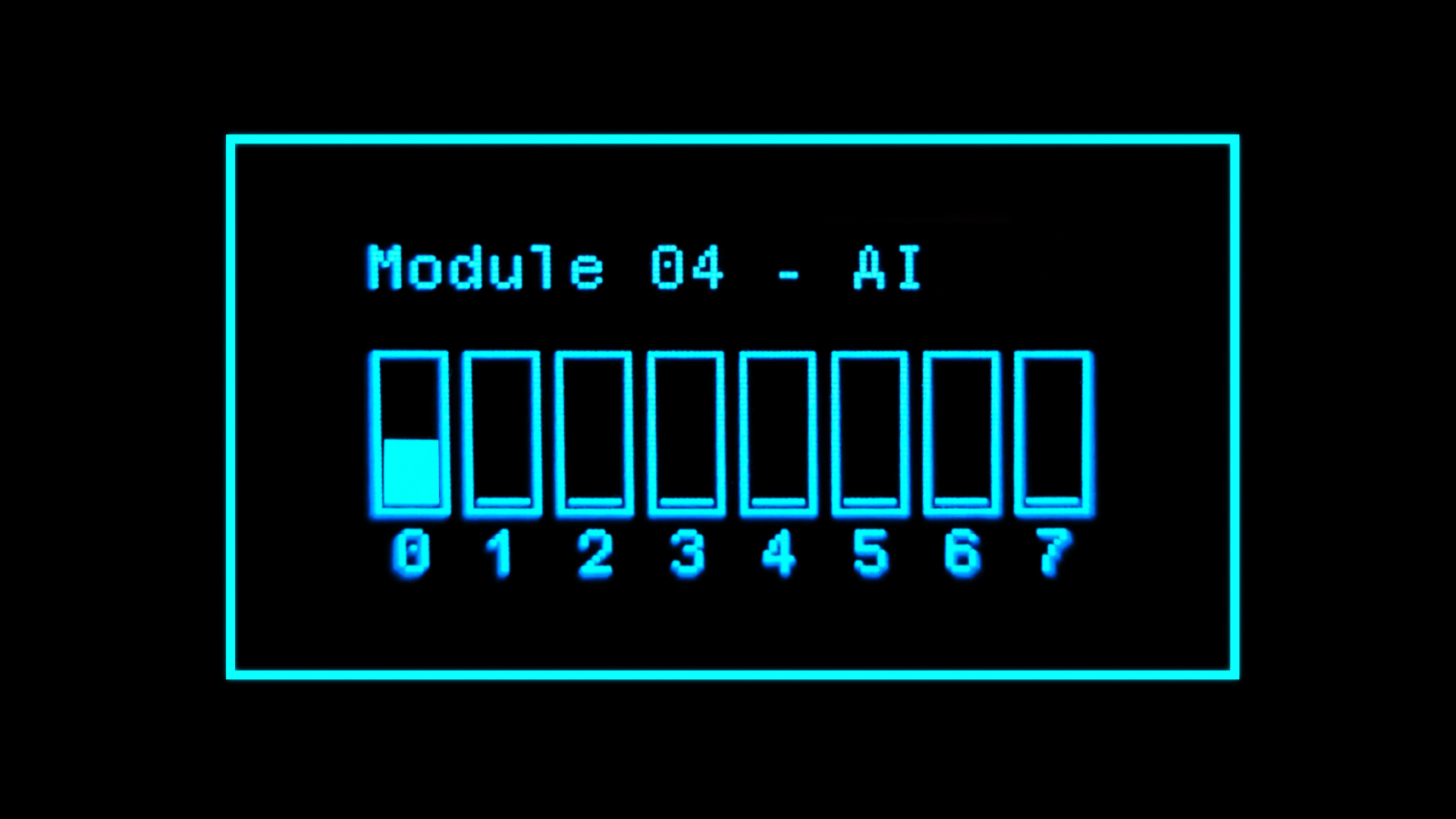

Channel Status Overview

Analog input levels are shown as filling vertical bars, providing visual feedback of each channel.

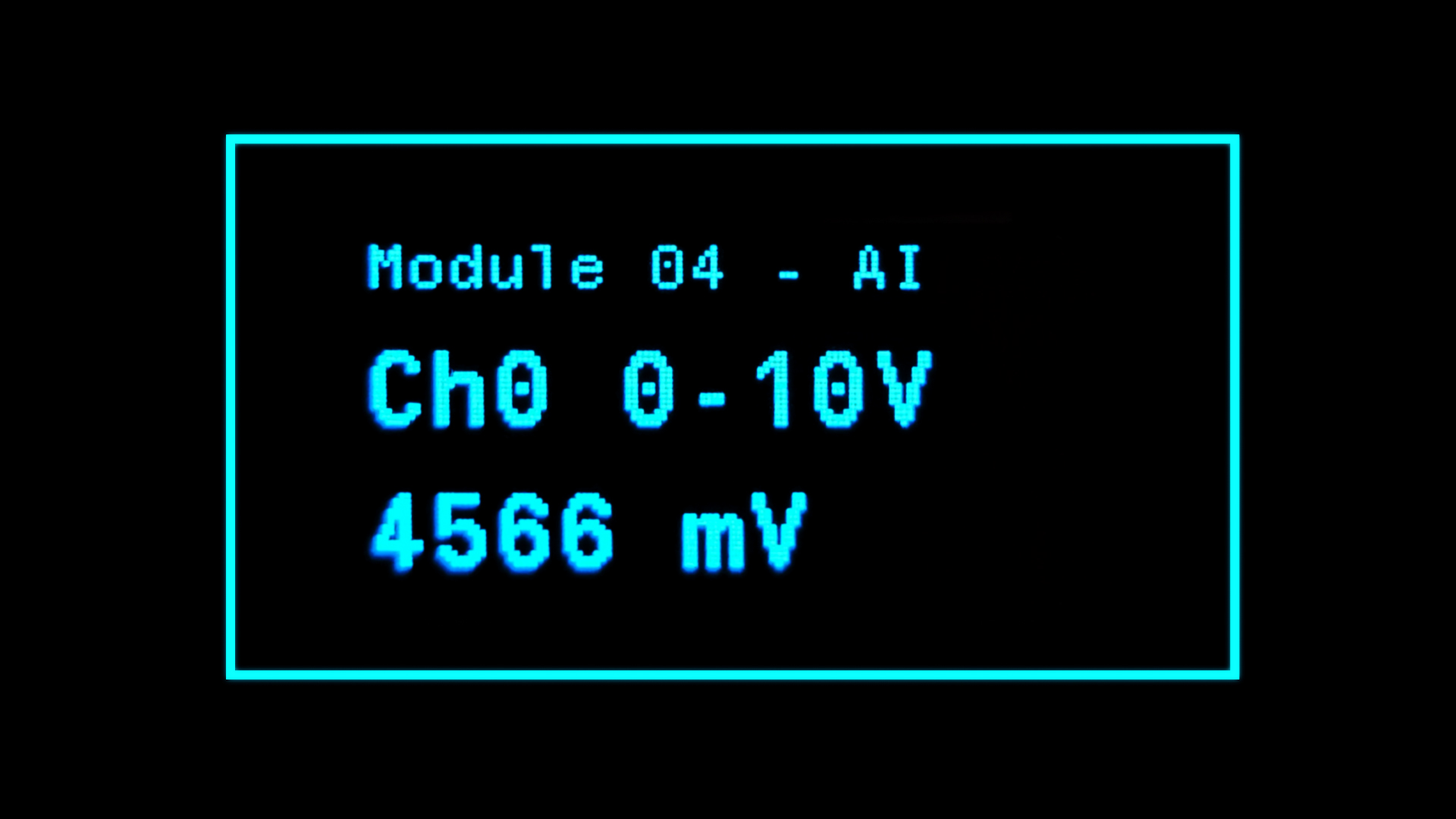

Per-Channel Diagnostic Details

Each input channel has a dedicated diagnostic page showing:

• Channel operating mode
  • Voltage mode (0-10 V)
  • Current mode (4-20 mA)
• Live measurement

Module Information

The last diagnostic page includes a QR code linking directly to the module’s online documentation.
