Operation

Technical Specifications

Outputs	4
Output range	0 - 10 V / 4 - 20 mA
Resolution	12 bits, 2.44 mV per count / 3.9 µA per count
Accuracy	± 0.4 % full-scale @ 25 °C
Accuracy drift with temperature	± 0.005 % per °C

Diagnostics

The Diagnostic view provides configuration and commanded output values for each analog output channel, helping verify channel setup and ensure the module is driving the expected signal.

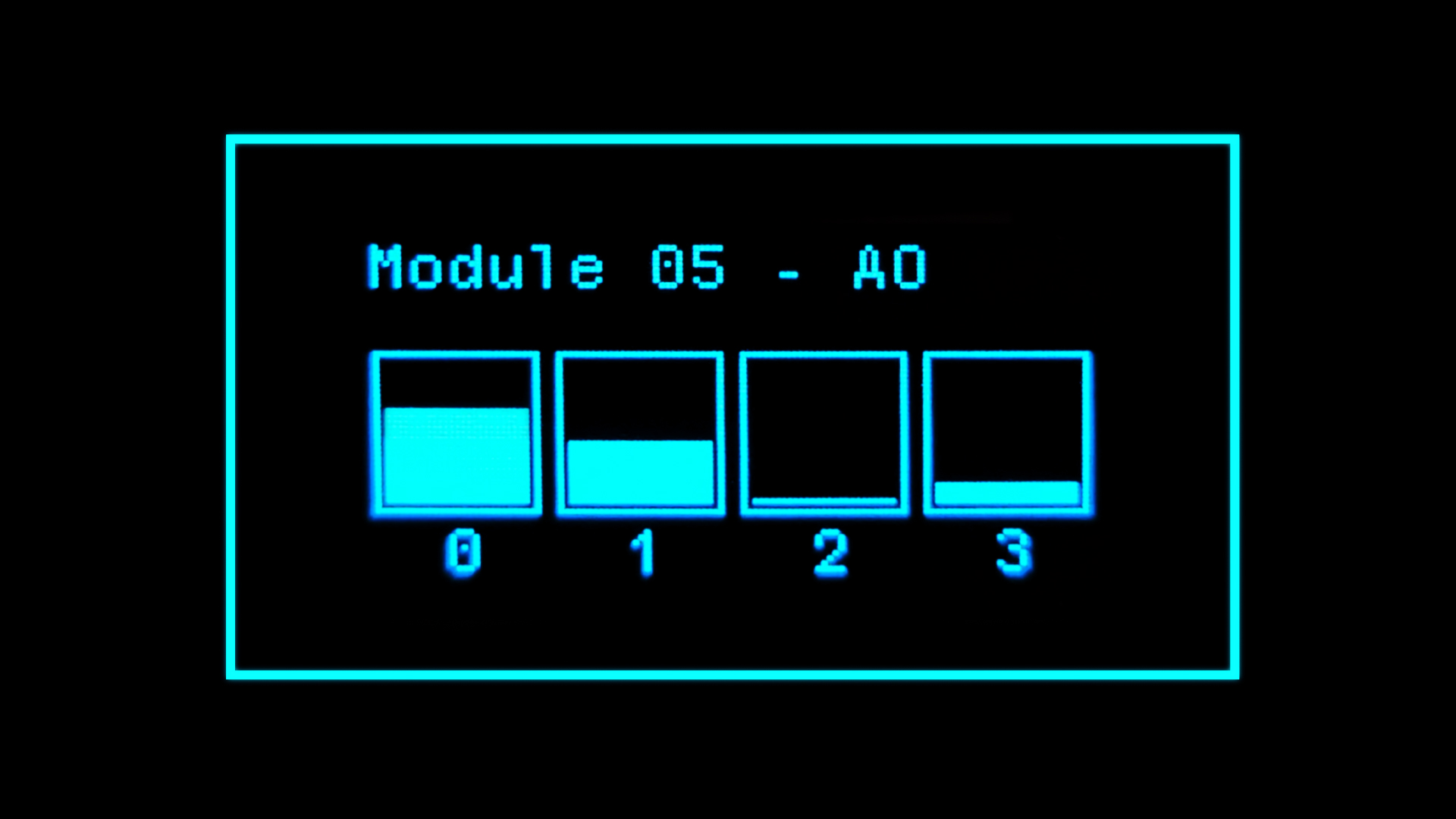

Channel Status Overview

Analog output levels are shown as filling vertical bars, providing visual feedback of each channel’s commanded level.

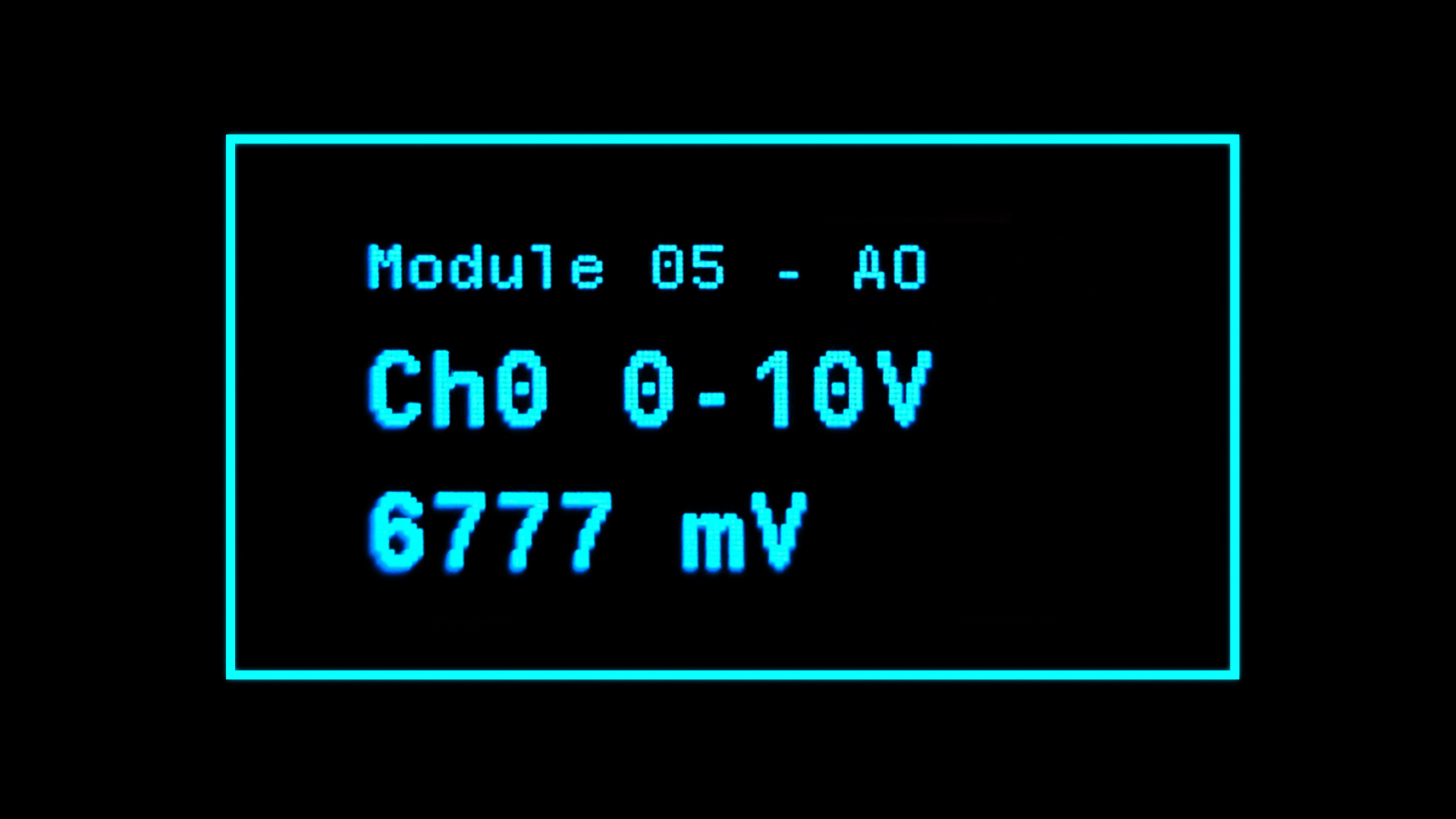

Per-Channel Diagnostic Details

Each output channel has a dedicated diagnostic page showing:

• Channel operating mode
  • Voltage mode (0-10 V)
  • Current mode (4-20 mA)
• Commanded output value (mV or µA)

Module Information

The last diagnostic page includes a QR code linking directly to the module’s online documentation.
